WYF-02D Medical pendant provides the equipment with the gas source, power supply, data communication interface, video interface, cabling, and piping, making equipment and cable management orderly to improve the work process. Due to the many types of equipment carried, this pendant should be heavy load capacity, there are enough power and data transmission terminals, are equipped with mechanical damping and gas dual systems moving the device.

Application area: Operating theater, emergency room, endoscopic room, anesthesiology department

Formed by one-time extrusion of high quality aluminum alloy, and the surface is treated with primary oxidation and rust prevention
Main color of gray to prevent visual fatigue and create a relaxed and comfortable enviroment for medical personal
Classic and smooth practical streamlined overall design convenient for medical personnel to clean and disinfect
350kg load-bearing capacity can easily integrate various medical equipment
Single arm reach 900mm, double arm reach 1600mm, effectively extending clinical applicability
Three-state (on, off, pull out) air port, can be repaired with air
Integrated high-loading tray, height is adjustable

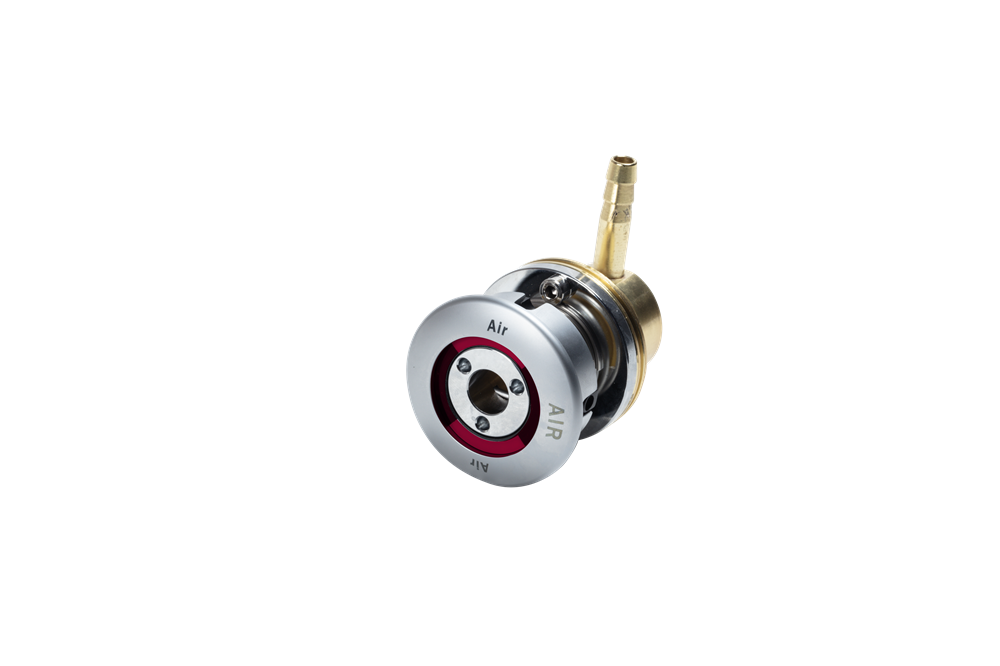

Preventing mis-insertion gas terminal, and the service life more than 80,000 times.
High-loading and extra-large integrated tray with adjustable height
Humanized design takes the medical staffs within reach and handy
More trays, drawers, gas outlets, power supply, Internet and telephone interface can be adjusted according to hospital’s needs
Modular design, flexible and diverse configurations
Optional color white, gray available

Arm rotating angle: 340°
Single arm pendant cantilever length: 900mm
Double arm pendant cantilever length: 900mm(upper)+ 700mm(lower)
Function column height: 1000mm
Single arm load capacity: 350KG
Double arm load capacity: 250KG
Brake mode: Mechanical
Drawer: Self-suction
