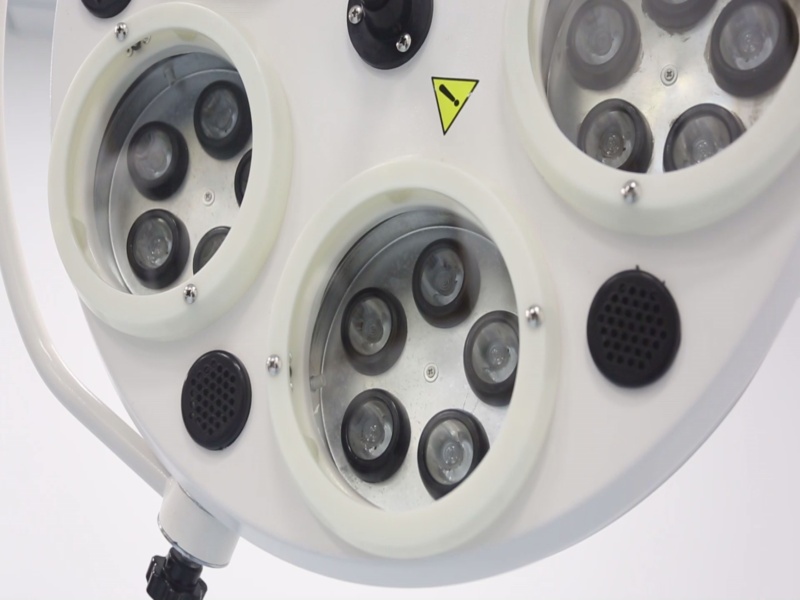

We are proudly introducing the WYLEDK surgical lighting system, which is a simpler LED lighting, while still delivering uncompromising light performance and cool, white high intensity light. It has been designed to illuminate operating room surgical fields and can be adjusted for light intensity in a variable pattern size. The result is the WYLEDK LED surgical light system: high performance optics in a familiar suspension.
Modern LED lighting technology
Traditional suspension
Variety of configurations: ceiling mounted, wall mounted and floor standing
A high-quality system to match your OR needs and your budget
The advanced LED technology in our lightheads offer:
High intensity
Cool, bright white light
Accurate color rendition
Superior deep-cavity illumination
Excellent shadow control
Energy efficiency
Technical Parameter |
Model No. |
WYLEDK5 |
|
Light intensity in Lux at 1 meter distance |
50,000-150,000 |
Color Temperature (K) |
4000±500 |
Color rendering index(Ra) |
≥90 |
Focusable Light Field size (mm) |
200±50 |
Working distance (mm) |
60-140 |
Depth of Illuminance (mm) |
≥800 |
Temperature increase in the head area |
0.5℃ |
Radiance Energy (w/㎡) |
600 |
Diameter of Lamp Head (mm) |
500 |
Light Source LED (pcs) |
25 |
Life-span of the LEDs |
50, 000 h |
Electric & frequency (V& Hz) |
100-240 & 50/60 |
Model No. |
WYLEDK5 |
Light head |
1 |
Supporting tube |
1 |
Balance arm |
1 |
Fixing plate |
1 |
Hand grip |
1 |
Service Manual |
1 |
Installation tool |
1 |
Spare safety wire |
1 |
