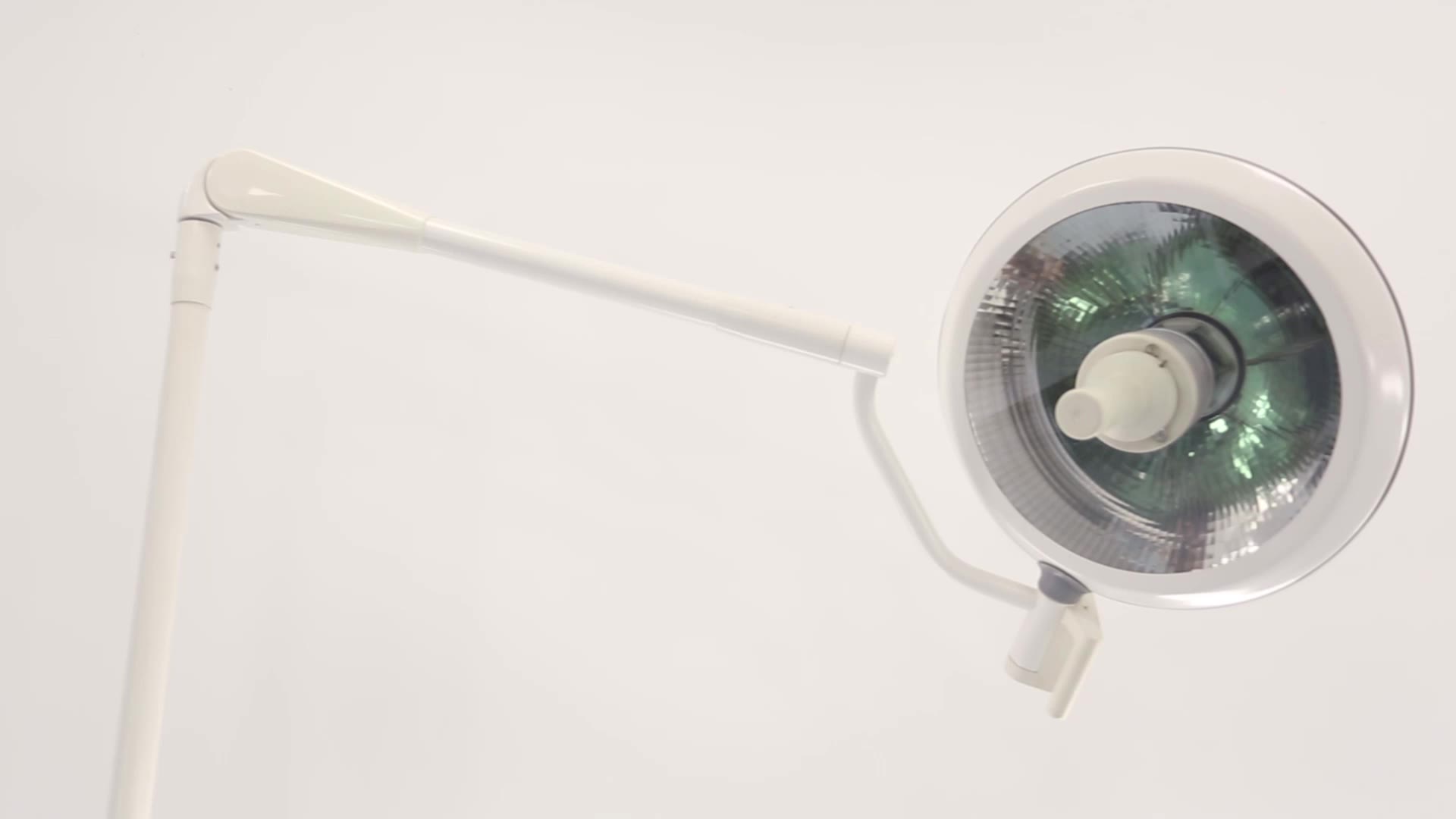

WYZL500 Mobile Trolley Halogen OT Light
WYZL500 Mobile Trolley Halogen OT Light
• Full-close streamline lamp body design completely meets the demand of the sterilization and high standard of laminar flow purification in the modern operation rooms;
• CAD/CAM designed squamous reflector system;
• Even illumination effectively eliminating shadows under varies circumstances;
• Color temperature approach of sunlight;
• Depth of light beams reaching over 800mm;
• Micro computer digital control system offers illuminance memory function;
• Adopt 8-stage continuous light adjustment;
• One lamp holder with two bulls enables automatic operation of the standby bulb in 1/5 second when the main bulb malfunctioned. Handle and panel have indicators for the damage of main or standby bulb;
• The handle on the central of lamp can be detachable, can take high temperature (≤ 134° C) sterilization treatment;
• Special heat-isolated radiation filter reduces heat to the minimum level;
• Easy to fix position timing after long time use;
• Average service life of halogen bulbs up to 1000 hours;
• Medical grade silent casters, easy to move.
|
Technical Parameter |
Model No. |
|
|
WYZL500 |
||
|
Intensity (Lx) |
20,000-80,000 |
|
|
Color temperature (K) |
4200±500 |
|
|
CRI (Ra %） |
≥85 |
|
|
Diameter of light field (mm) |
175±50 |
|
|
Depth of illuminance (mm) |
≥800 |
|
|
Shadow Dilution （%） |
No mask with tube |
80 |
|
1 mask without tube |
12 |
|
|
1 mask with tube |
11 |
|
|
2 masks without tube |
34 |
|
|
2 masks with tube |
35 |
|
|
Input power (VA) |
350 |
|
|
Bulb power (w) |
150 |
|
|
Radiance Energy （w/㎡） |
1000 |
|
|
Diameter of lamp head (mm) |
500 |
|
|
Optional |
Storage battery |
|
|
Model No. |
WYZL500 |
|
500 Light head |
1 |
|
Lighting component |
1 |
|
Sterilize hand grip |
1 |
|
Halogen light bulb |
3 |
|
Base plate |
1 |
|
Upper upright pole |
1 |
|
Bottom upright pole |
1 |
|
Spring balance arm |
1 |
|
Square tube |
2 |
|
Service Manual |
1 |
|
Installation tool |
1 |
|
Casters |
4 |
|
Screw, nut, flat washer, spring film |
1 pack |
