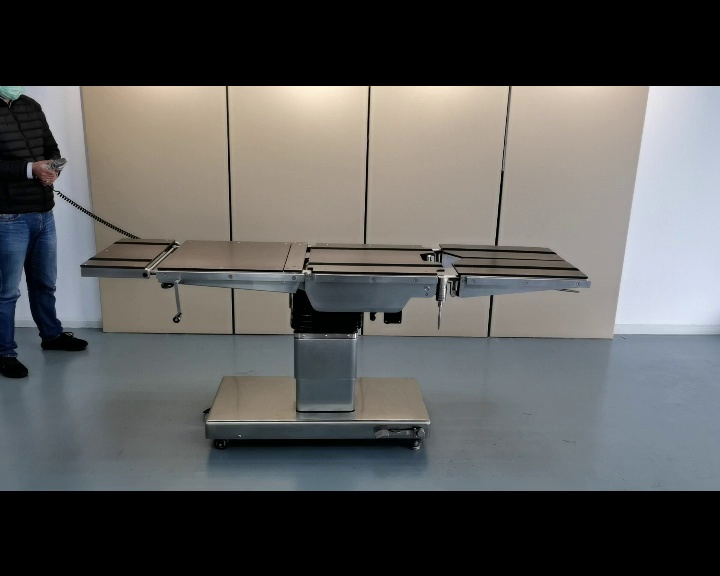

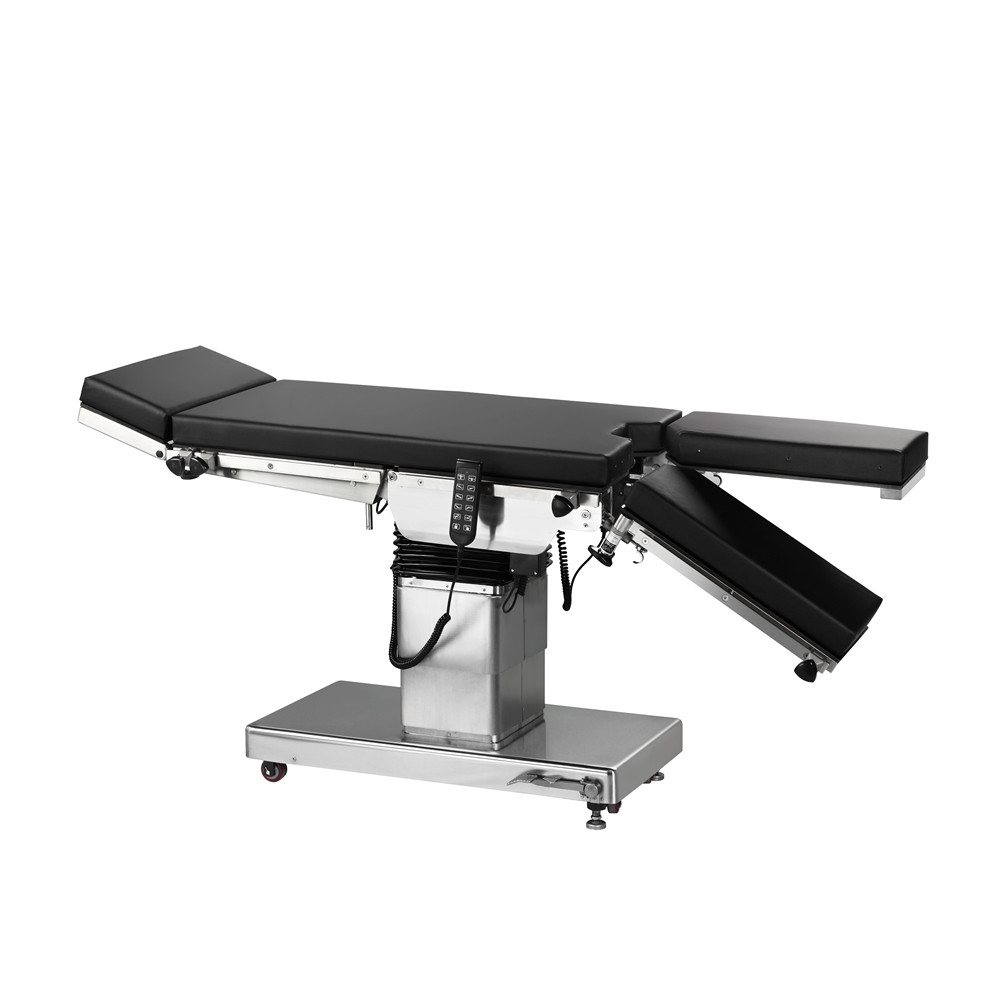

WYD03A electric operating table is suitable for general surgery, heart and kidney surgery, orthopedics, neurosurgery, gynecology, urology, plastic surgery and other surgeries.

• Quality automation and remote control enables low noise, reliable, easy operation, flexible and safe.
• Double controller which make it easy to operate, one hand controller and one controller embedded in the centre of column.
• Elegant appearance of the base, the base cover can be disassembled from the middle and divided into two parts, easy to repair and maintain.
• Detachable leg plate, easy for distinction and can be used for orthopedic traction frame.
• Quality radio transparent tabletop entire table’s length, 350mm sliding distance, which can be used for C-arm and X-ray.
• The base cover, side rails and accessories are made of SUS 304 stainless steel, durable and easy to clean.
• Imported casters, flexible and easy to move.
• The five independent parts (head, back, waist, hips, legs) create a professional positioning that conforms to the human body's physiological structure. Various positions such as lateral decubitus, lithotomy position, chair position, supine position, etc. greatly save the operation time.

Length/Width: 2100mm/550mm

Minimum height/ Max height: 700mm/ 1000mm

Elevation: ≥300mm

Trendelenburg/Reverse Trendelenburg: ≥25°/≥25°

Lateral Tilt(left/right): ≥15°/≥15°

Head plate (up/down): ≥45°/≥90°

Back plate(up/ down): ≥80°/≥17°

Kidney Bridge Elevation: ≥120mm

Leg Plate (up/down/ outwards): ≥15/ ≥90°/≥180°

Leg plate (horizontal positioning): ≥90°

Backup battery: Yes, can be used for 30 operations

Maximum load capacity: 200kgs

Voltage/ Frequency: 110V/220V, 50Hz/60Hz
