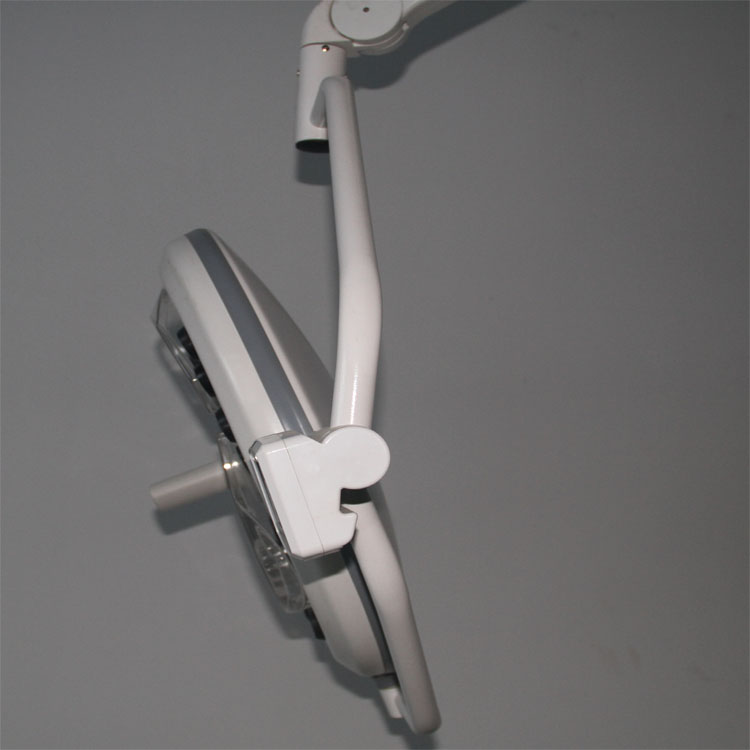

WYLED5 Single Light Head Ceiling LED Surgical Light
WYLED5 Single Light Head Ceiling LED Surgical Light
• High performance illumination for every type of surgery
• Clear pure white brightness at 140 000 Lux
• Offer better tissue discrimination with color rendering index up to 93
• Excellent contrast in the operating field
• Shadows reduction in the surgical field and total illumination of the surface and at depth
• IR-free light without heat in the surgical area and on the surgeon’s head
• The system of surgical field size is achieved by simple clockwise or anti-clockwise rotation of the handle
• Multimedia compatibility with video camera and monitor
• Exceptional duration ensuring easier management for the future
HD Video camera system is optional.
|
Technical Parameter |
Model No. |
|
WYLED5 |
|
|
Light intensity in Lux at 1 meter distance |
≥140,000 |
|
Color Temperature (K) |
3900; 4200; 4500; 4800; 5000 |
|
Color rendering index(Ra) |
93; 91; 89; 87; 85. |
|
Focusable Light Field size (mm) |
200±50 |
|
Working distance (mm) |
60-140 |
|
Depth of Illuminance (mm) |
≥1000 |
|
Temperature increase in the head area |
0.5℃ |
|
Radiance Energy (w/㎡) |
600 |
|
Diameter of Lamp Head (mm) |
800 |
|
Light Source LED (pcs) |
48 |
|
Life-span of the LEDs |
50, 000 h |
|
Electric & frequency (V& Hz) |
100-240 & 50/60 |
|
Optional |
HD video camera, storage battery. |
|
Installation height |
2.7m-3.2m |
|
Model No. |
WYLED5 |
|
Light head with built-in video camera |
1 |
|
Sterilize hand grip |
2 |
|
Balance arm |
1 |
|
Fixing plate |
1 |
|
Suspension arm |
1 |
|
Plastic housing for fixing plate |
1 |
|
Plastic covering for balance arm |
2 |
|
Plastic ring |
1 |
|
Screw, nut |
1 |
|
Service Manual |
1 |
|
Installation tool |
1 |
