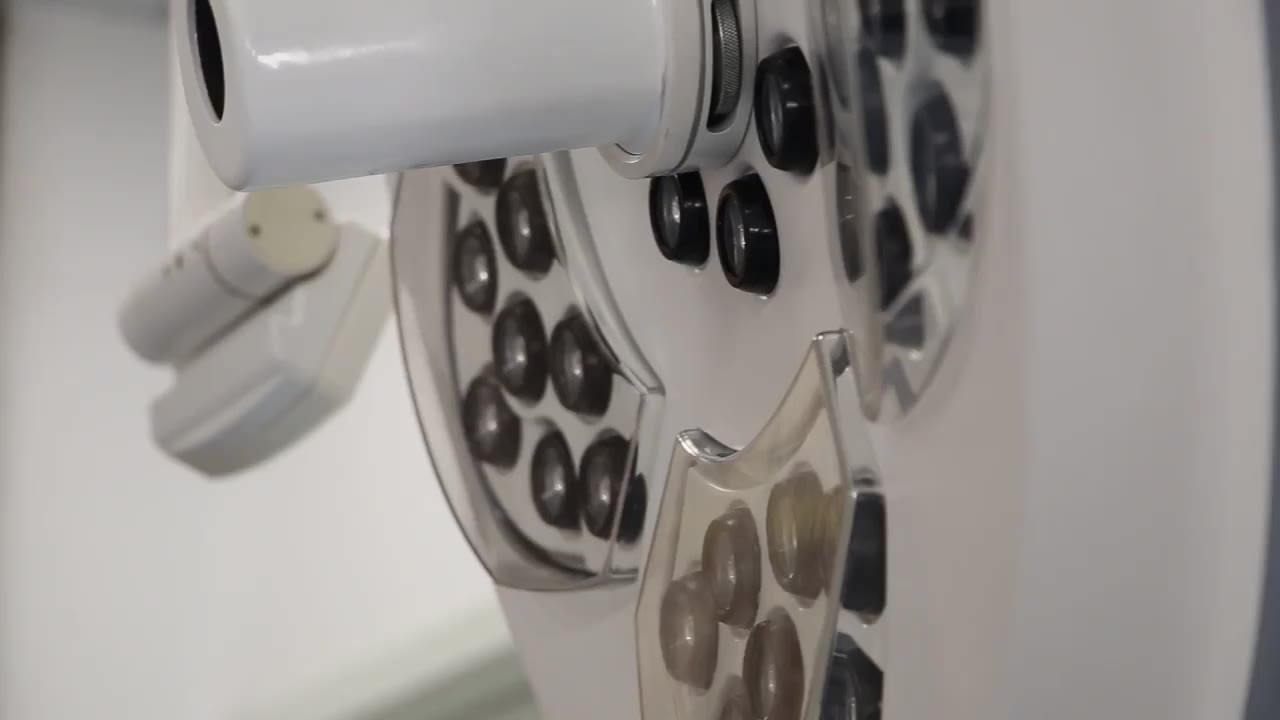

WYLED5/3 LED surgical light is born to meet the needs of the operating room granting an optimal performance, precision, long lasting life and management of consumption. It helps to improve working condition of the surgeon by combining sole technical features with unique design that enhance visual comfort, laminar flows compatibility.
• High performance illumination for every type of surgery
• Clear pure white brightness at 140 000 Lux
• Offer better tissue discrimination with color rendering index up to 93
• Excellent contrast in the operating field
• Shadows reduction in the surgical field and total illumination of the surface and at depth
• IR-free light without heat in the surgical area and on the surgeon’s head
• The system of surgical field size is achieved by simple clockwise or anti-clockwise rotation of the handle
• Multimedia compatibility with video camera and monitor
• Exceptional duration ensuring easier management for the future
Precision Surgical Images
The WEYUAN HD In-light Camera produces a high quality 1080p HD image for a multitude of uses in the OR. With an outstanding zoom capability, distinct HD images can be viewed wherever the surgical image is required. From recording to broadcasting a procedure, the WEYUAN HD offers a vantage point to the progress of the surgical case in impeccable detail.
The 20X Optical zoom allows the WEYUAN HD to maintain a full 1080p HD image without resolution degradation.
|
Technical Parameter |
Model No.: WYLED5/3 Combination |
|
|
Main light head |
Satellite light head |
|
|
Light intensity in Lux at 1 meter distance |
≥140,000 at 1 m. |
≥100,000 at 1 m. |
|
Color Temperature (K) |
3900; 4200; 4500; 4800; 5000 |
3900; 4200; 4500; 4800; 5000 |
|
Color rendering index(Ra) |
93; 91; 89; 87; 85. |
93; 91; 89; 87; 85. |
|
Focusable Light Field size (mm) |
200±50 |
200±50 |
|
Working distance (mm) |
60-140 |
60-140 |
|
Depth of Illuminance (mm) |
≥1000 |
≥1000 |
|
Temperature increase in the head area |
0.5℃ |
0.5℃ |
|
Radiance Energy (w/㎡) |
600 |
600 |
|
Diameter of Lamp Head (mm) |
800 |
600 |
|
Light Source LED (pcs) |
48 |
33 |
|
Life-span of the LEDs |
50, 000 h |
50, 000 h |
|
Electric & frequency (V& Hz) |
100-240 & 50/60 |
100-240 & 50/60 |
|
Optional |
HD video camera, storage battery |
HD video camera, storage battery |
|
Installation height |
2.7m-3.1m |
2.7m-3.1m |
|
Model No. |
WYLED5/3 Combination |
|
Light head with built-in video camera |
1 |
|
Sterilize hand grip |
4 |
|
Balance arm |
2 |
|
Fixing plate |
1 |
|
Suspension arm |
1 |
|
Plastic housing for fixing plate |
1 |
|
Plastic covering for balance arm |
4 |
|
Plastic ring |
1 |
|
Screw, nut |
1 |
|
Service Manual |
1 |
|
Installation tool |
1 |
|
Recorder |
1 |
